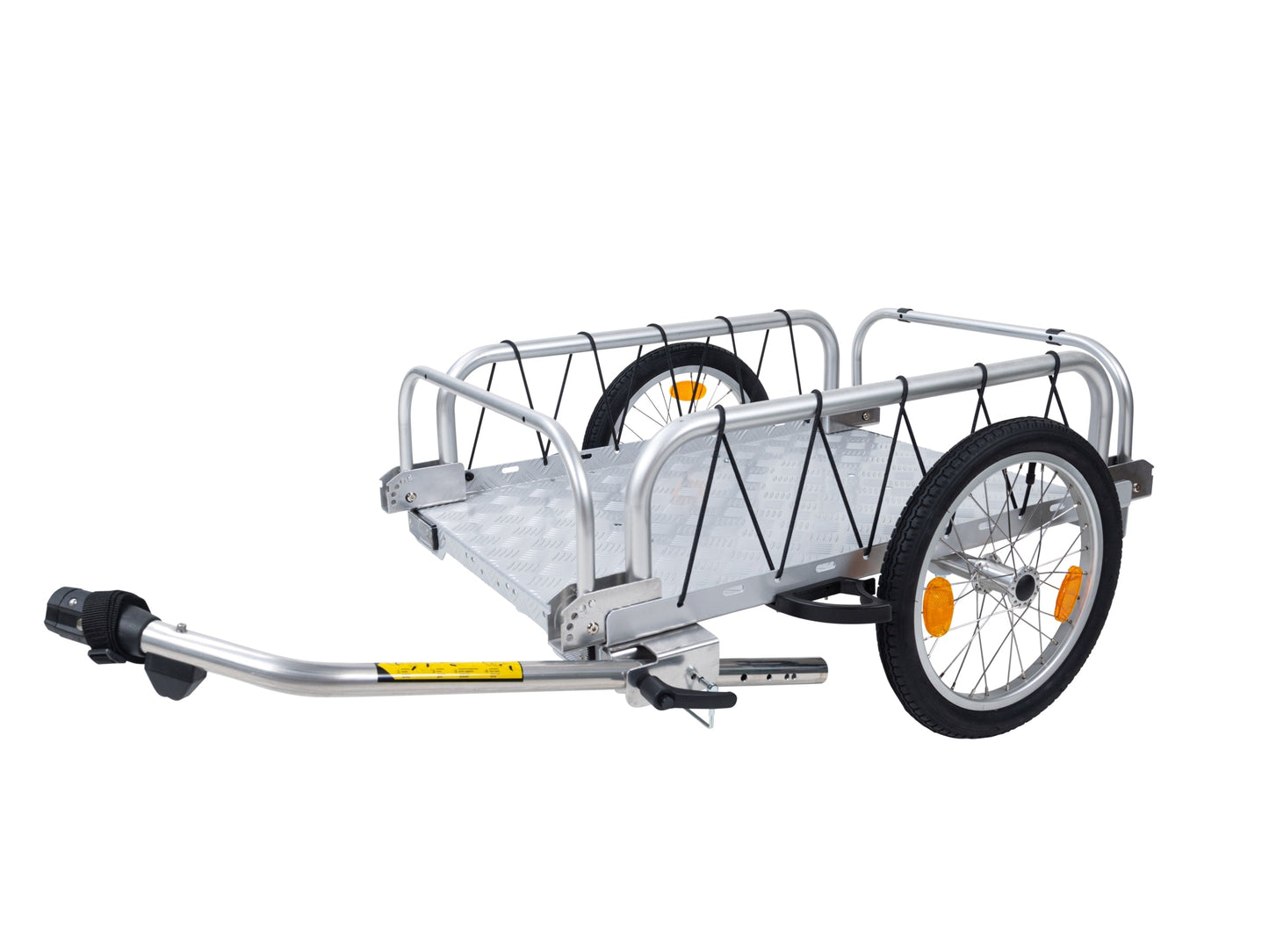

Model "ONE" HAUTOO bicycle trailer

Model "ONE" HAUTOO bicycle trailer

€649,00 EUR
€649,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Tire options
coupling

Mass

Width: 77 cm

Loading area width: 50.5 cm

Length: 92 cm

Loading area length: 82.7 cm

Length unfolded: 124.5 cm

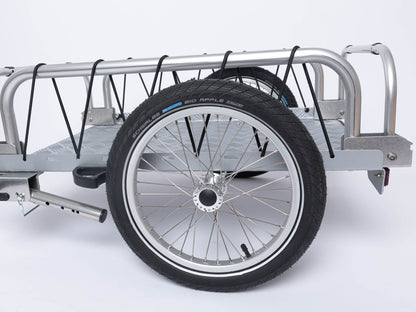

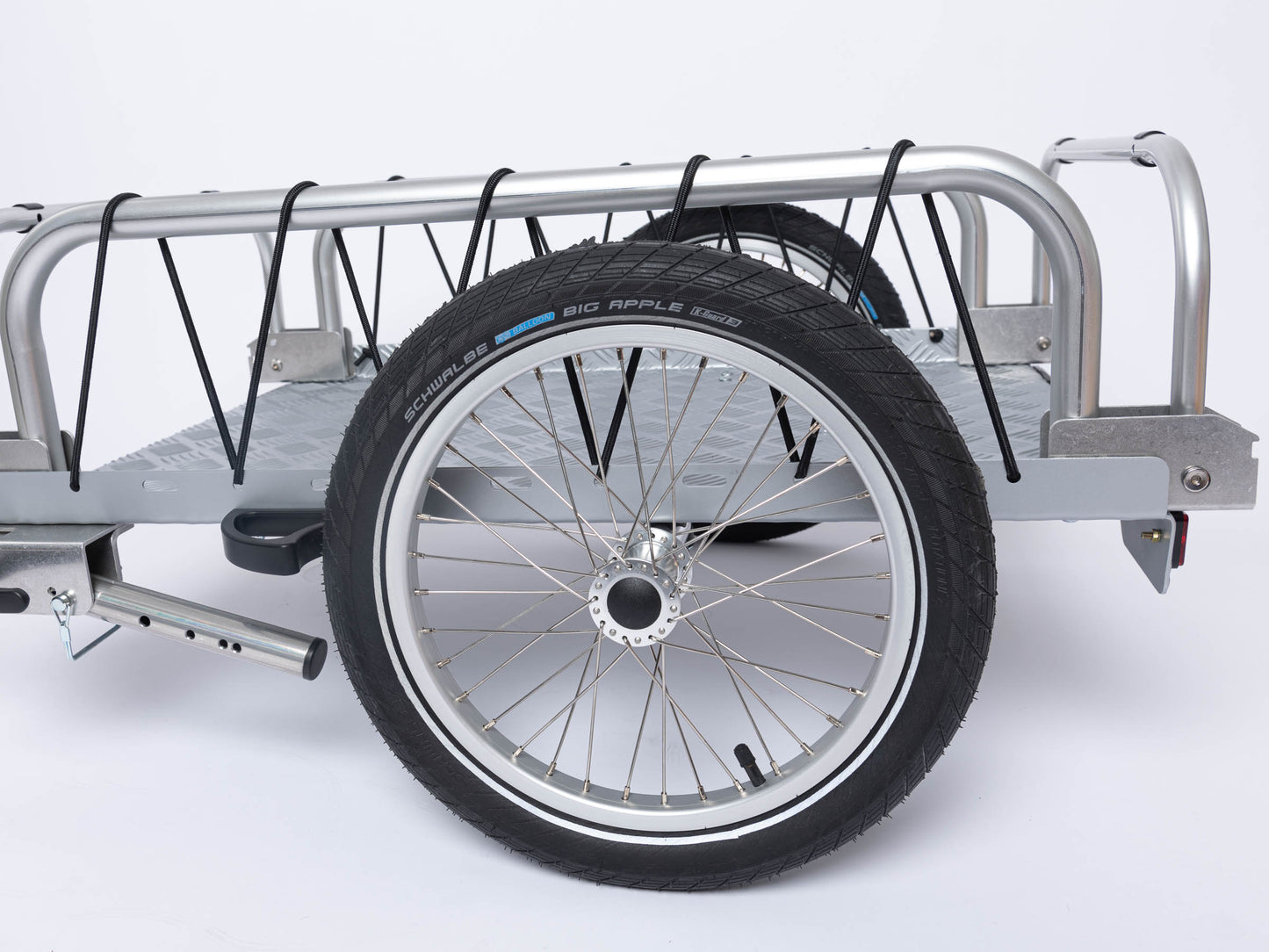

Wheel size: 16 inch

Weight

10 kg

Download operating instructions

HAUTOO ONE assembly and operating instructions

WEBER clutch operating instructions

Technical details

Data sheet

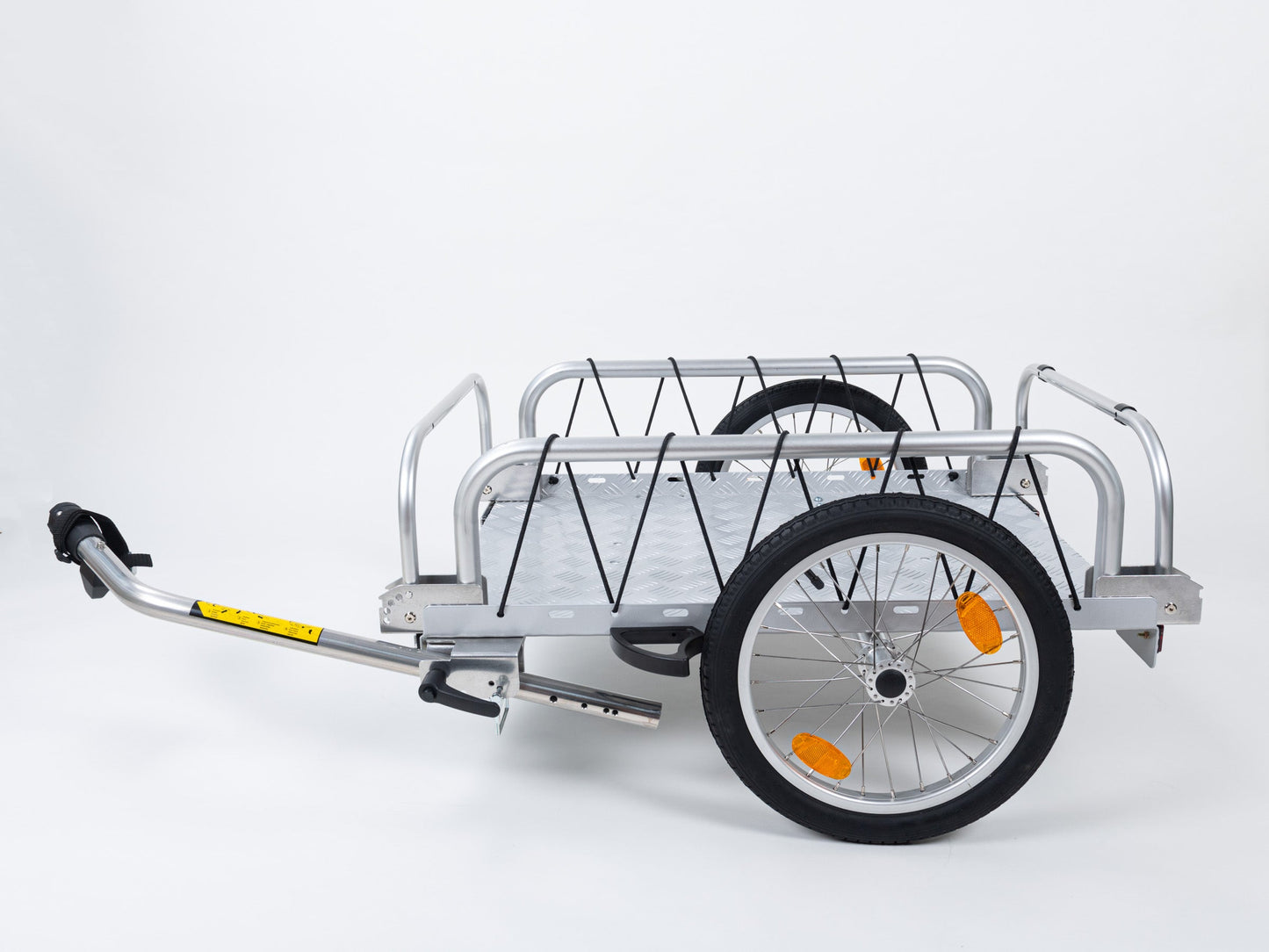

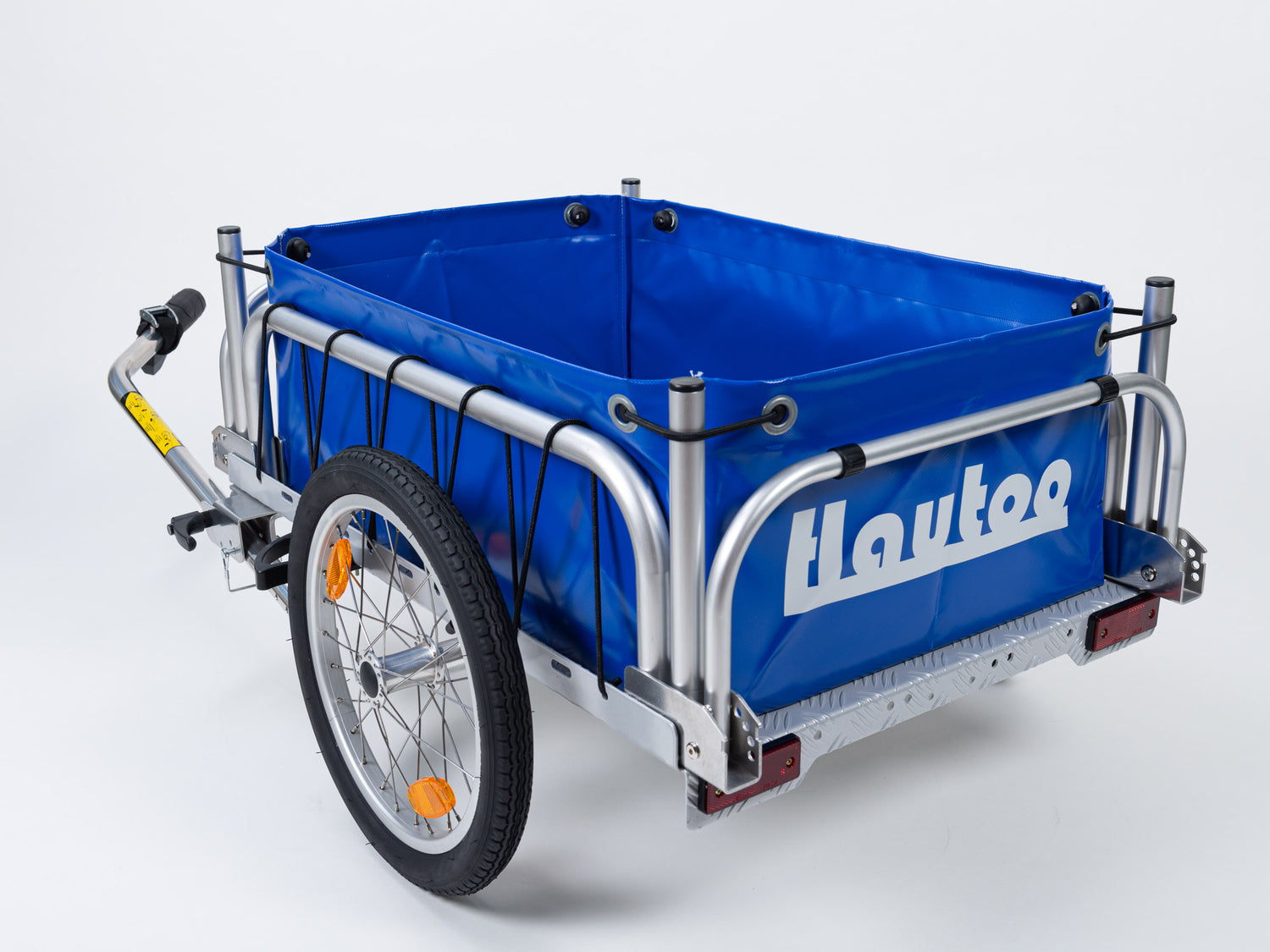

Hautoo trailer, closed up, with bag

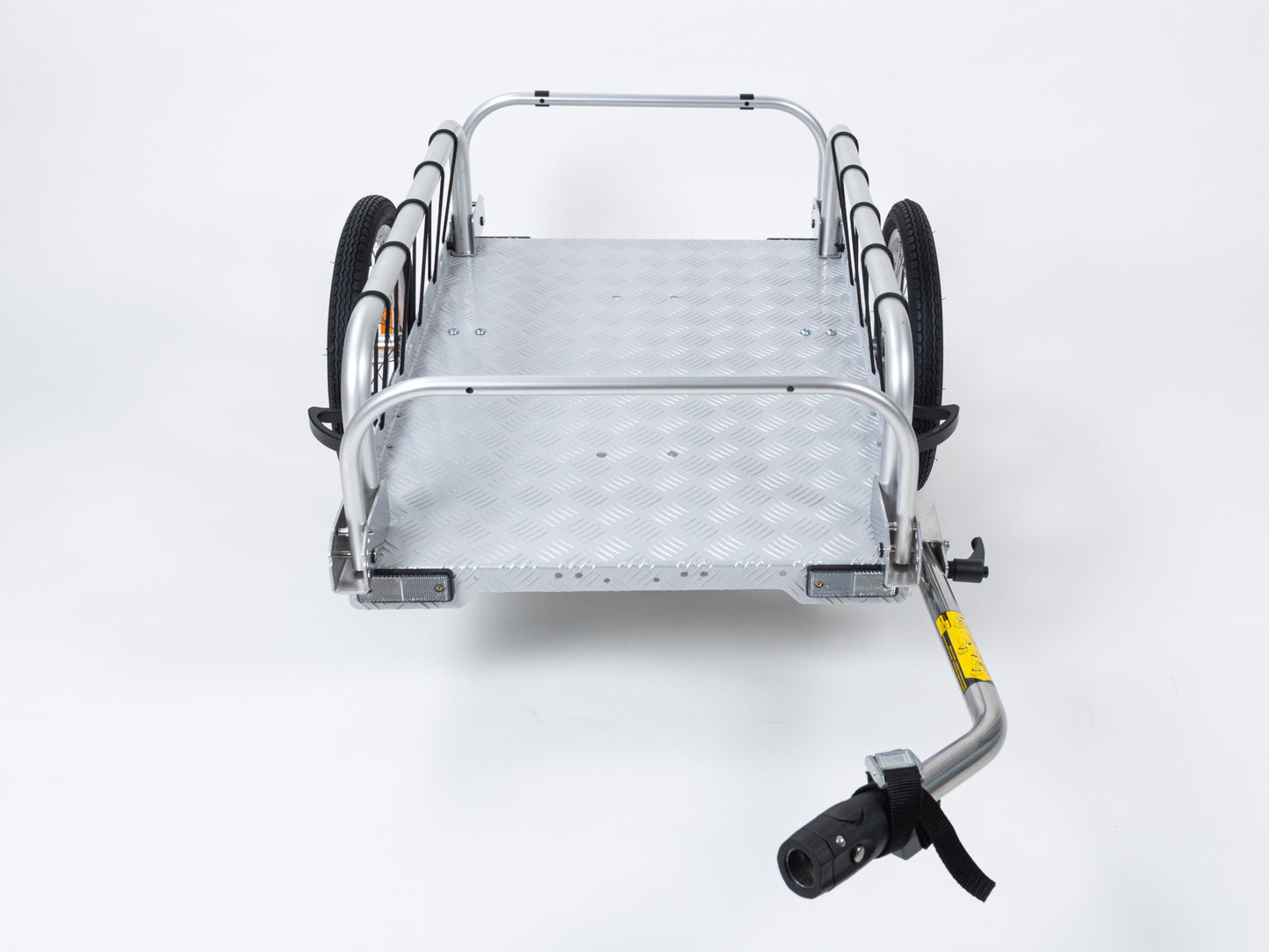

trailer in front

trailer in the back

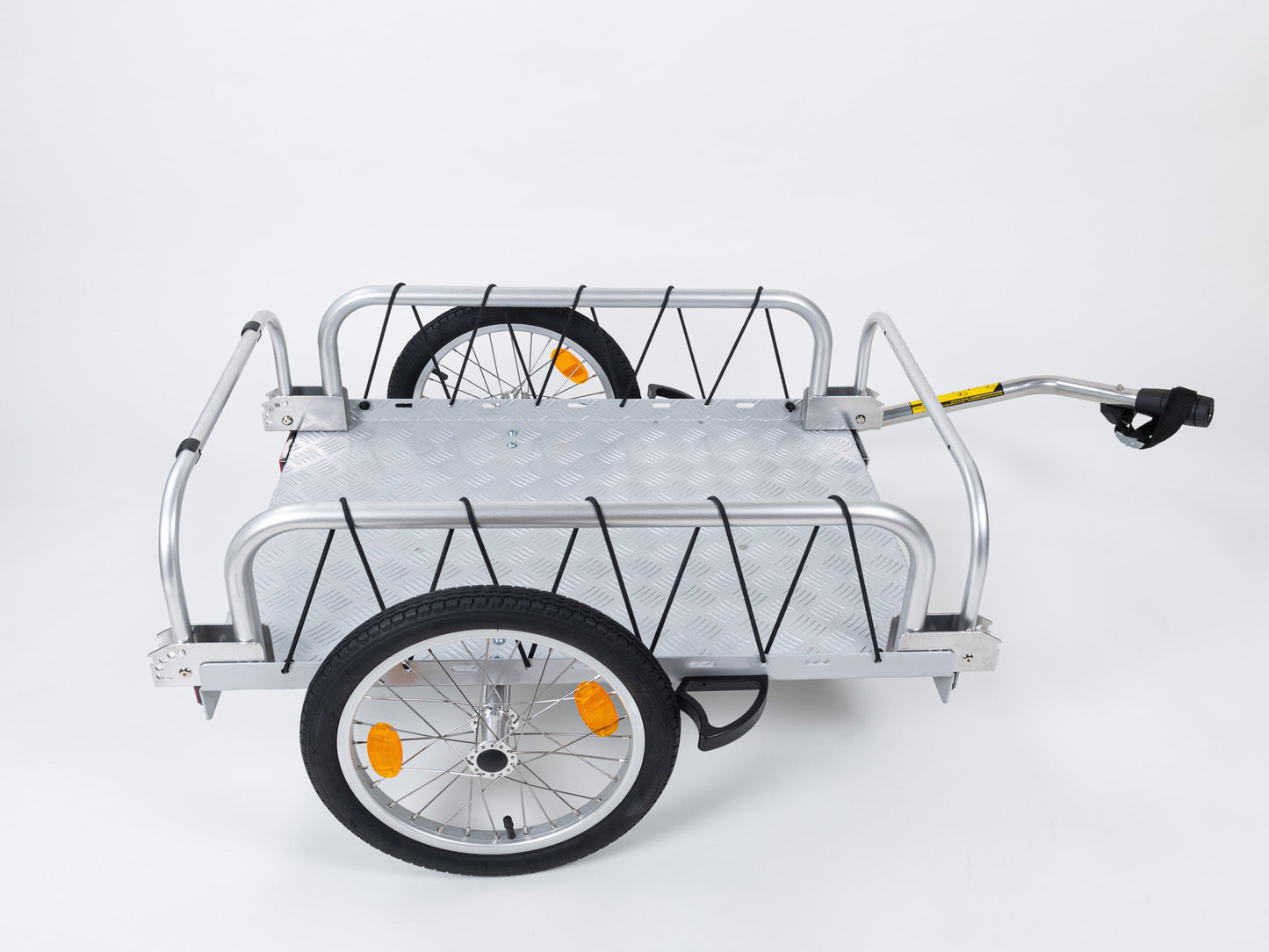

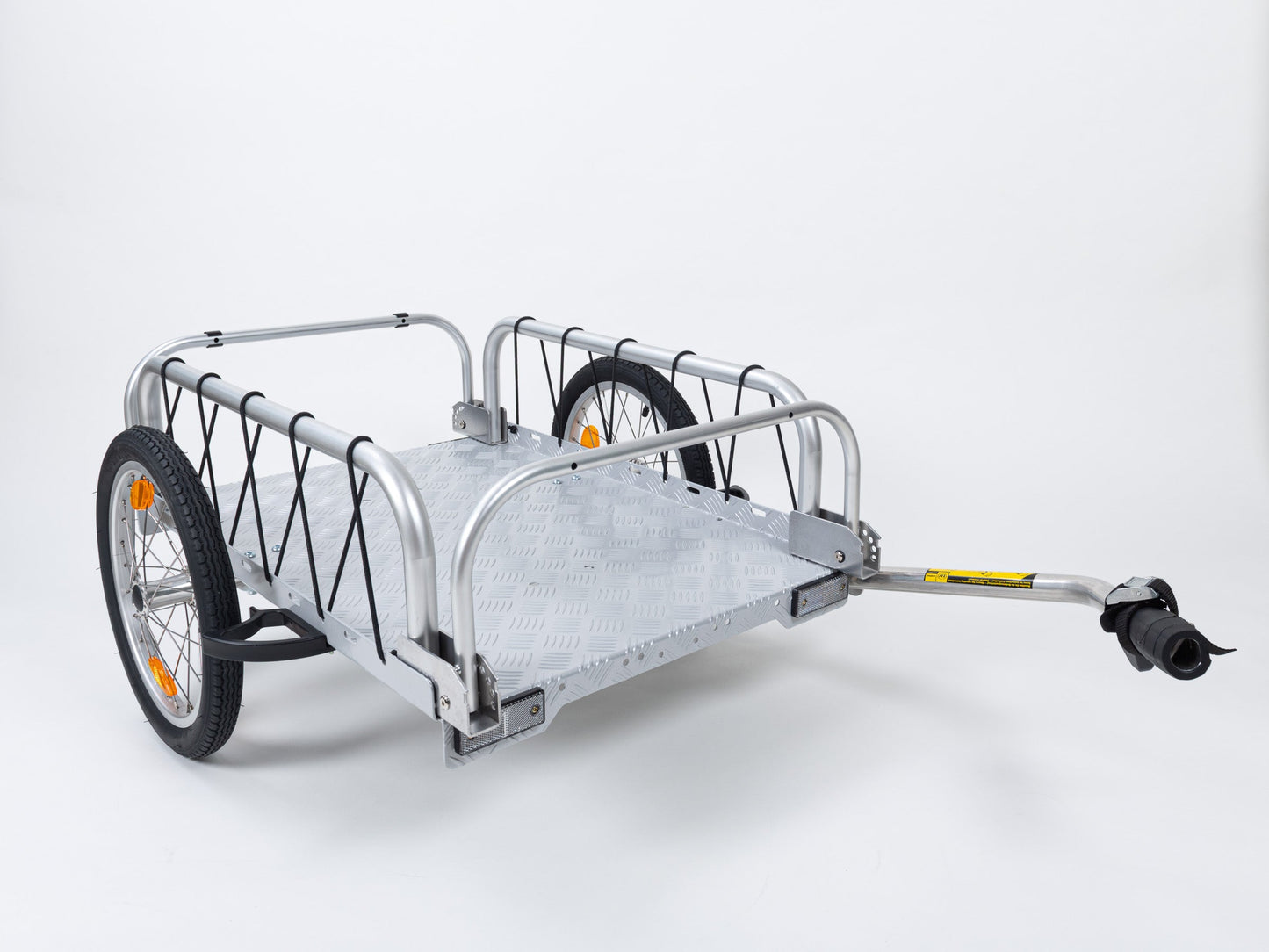

Hautoo trailer, opened up, without bag

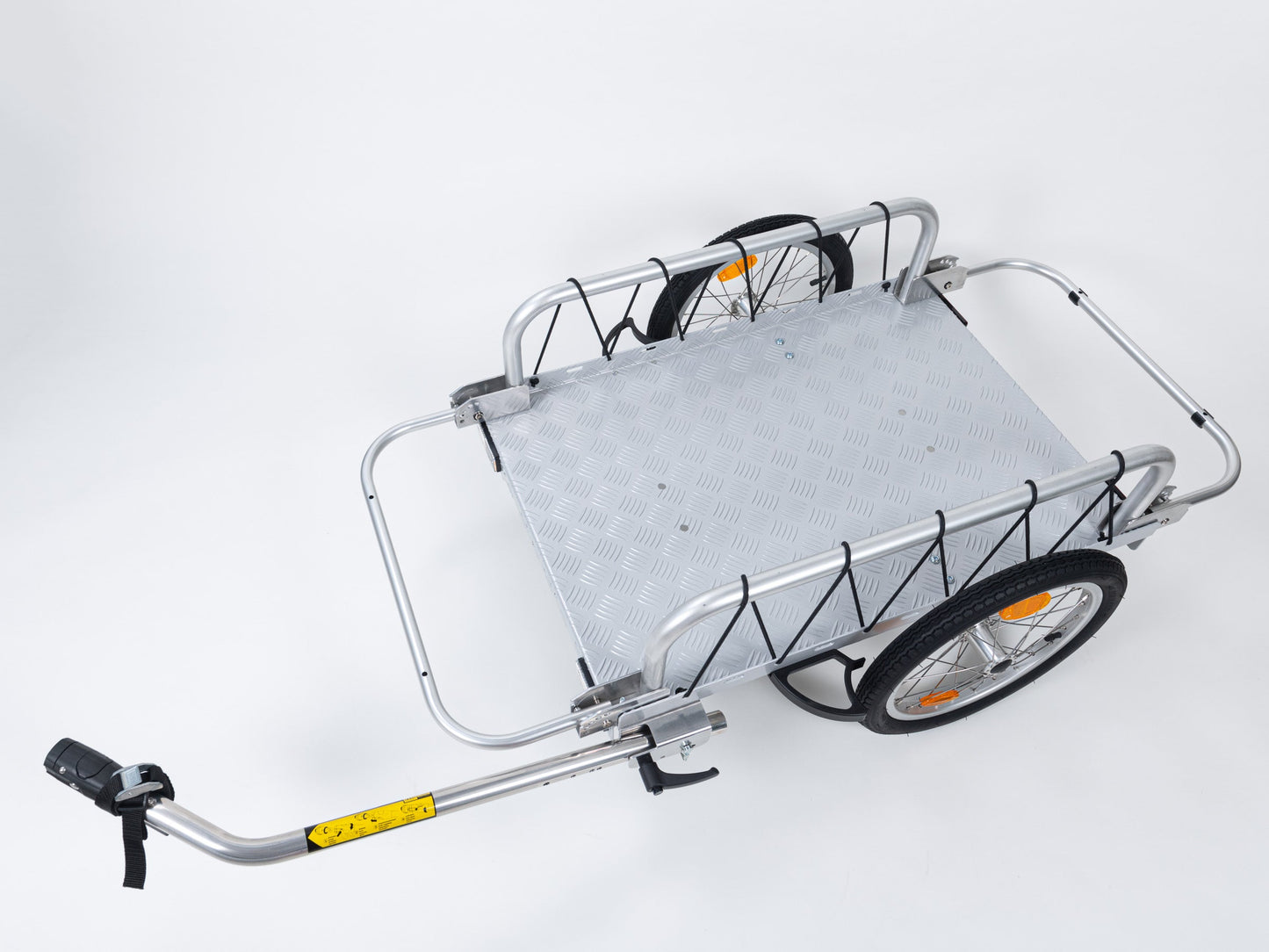

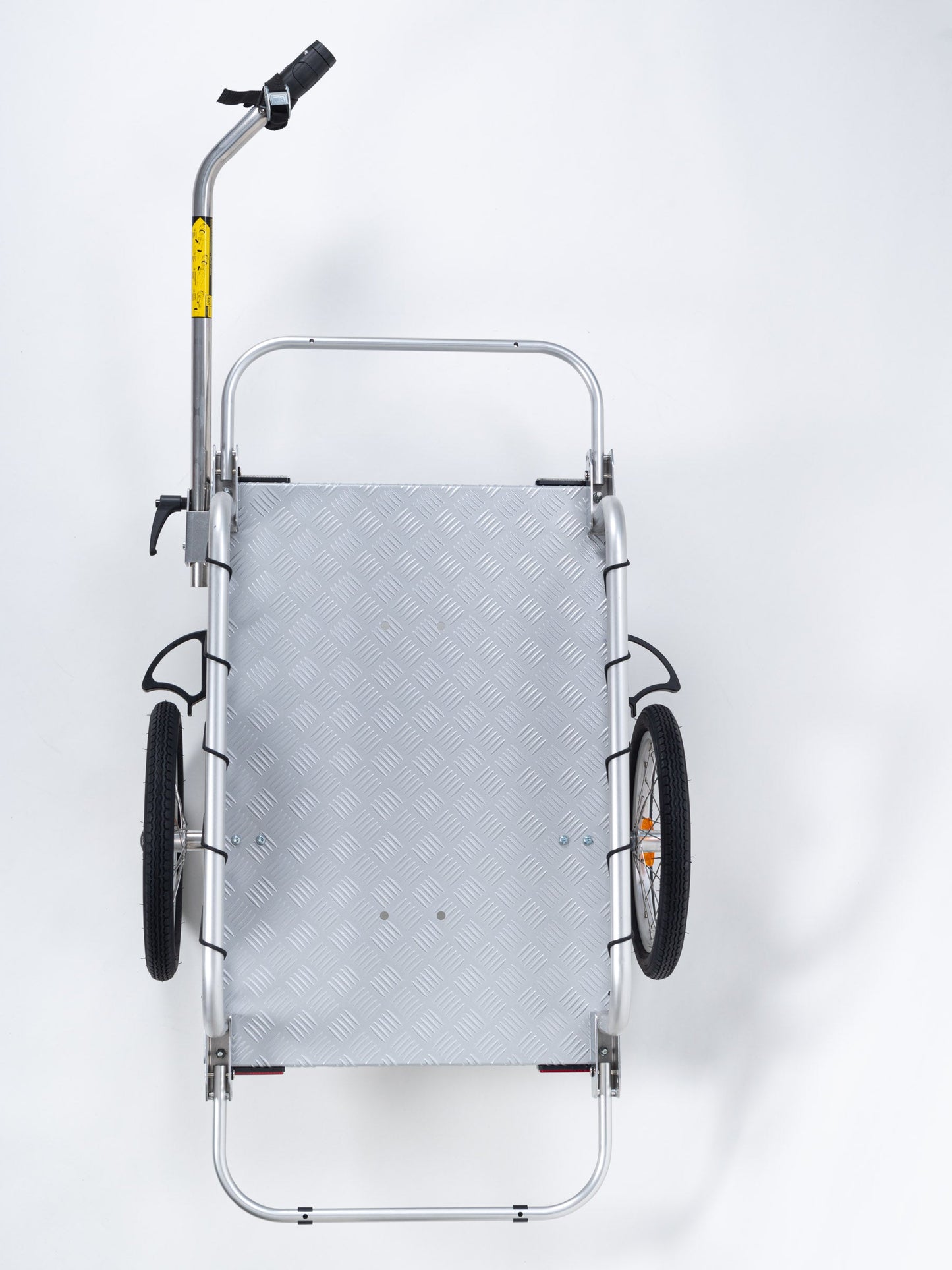

trailer unfolded

maximum weight allowed

Maximum weight

55kg / 121lbs

Maximum payload

45 kg / 99 lbs

Drawbar load

2 - 6.5 kg / 4.4 - 14 lbs

The permissible total weight must not exceed 55 kg (45 kg load, 10 kg own weight).

The bicycle trailer can be used with bicycles between 26 inch and 29 inch tire size as standard. For use with 20 or 24 inches, please contact us and we will adjust the drawbar mount.

Assembly

The Hautoo bike trailer is delivered partially assembled. A description of the assembly can be found in the assembly and operating instructions. Don't worry, it's really easy with the special tools provided.

Assembly

View full details

Matching products

1 4
View all

»Winner« in the category - Excellent Product Design - Bicycles and E-Bikes

FOCUS MOBILITY - Product of the Year 2023/24

Winner in the bicycle trailer category

Link to the test

The one - for everything!

Our ONE model is special....

flexible

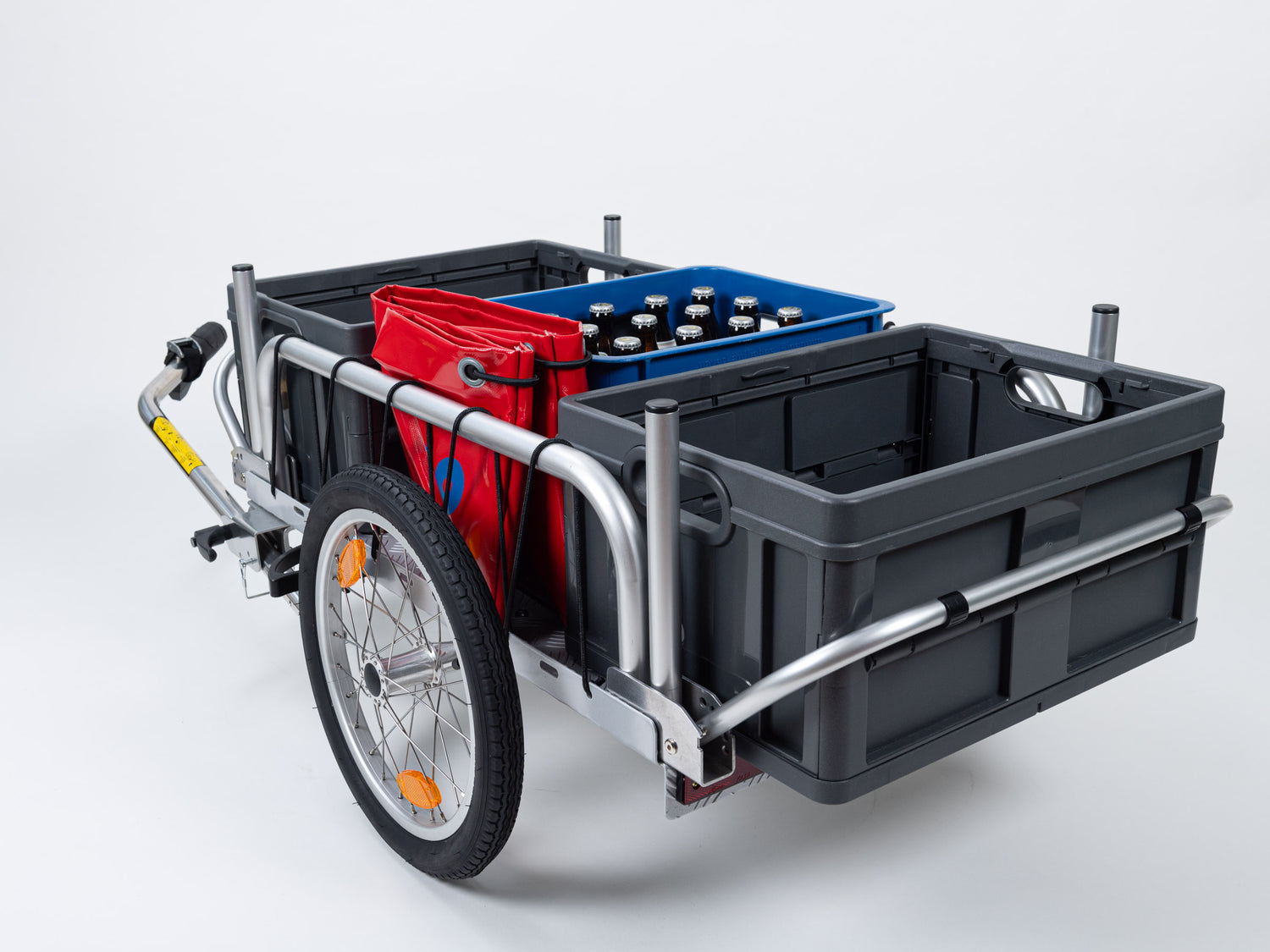

The sturdy base plate with side railing offers space for up to three crates of drinks. Patented, five-step folding bars on the front and back allow for the transport of long items such as ladders, skis, surfboards, and much more. An additional transport bag made of robust truck tarpaulin, available in various colors, holds everything from grocery shopping to sports or barbecue equipment.

Our large travel bag, available separately, can easily fit a complete camping gear. It's weatherproof and can be easily and securely attached to your bike trailer.

The drawbar can be adjusted to six positions: This means that the cargo trailer is always approximately horizontal for any bike with wheel sizes from 20 to 29 inches, and you can also pull it as a handcart.

This gives you endless possibilities for use with just one trailer.

practical:

Well-thought-out design, optimized for use and production, not only looks good, but is also a lot of fun to use and saves costs.

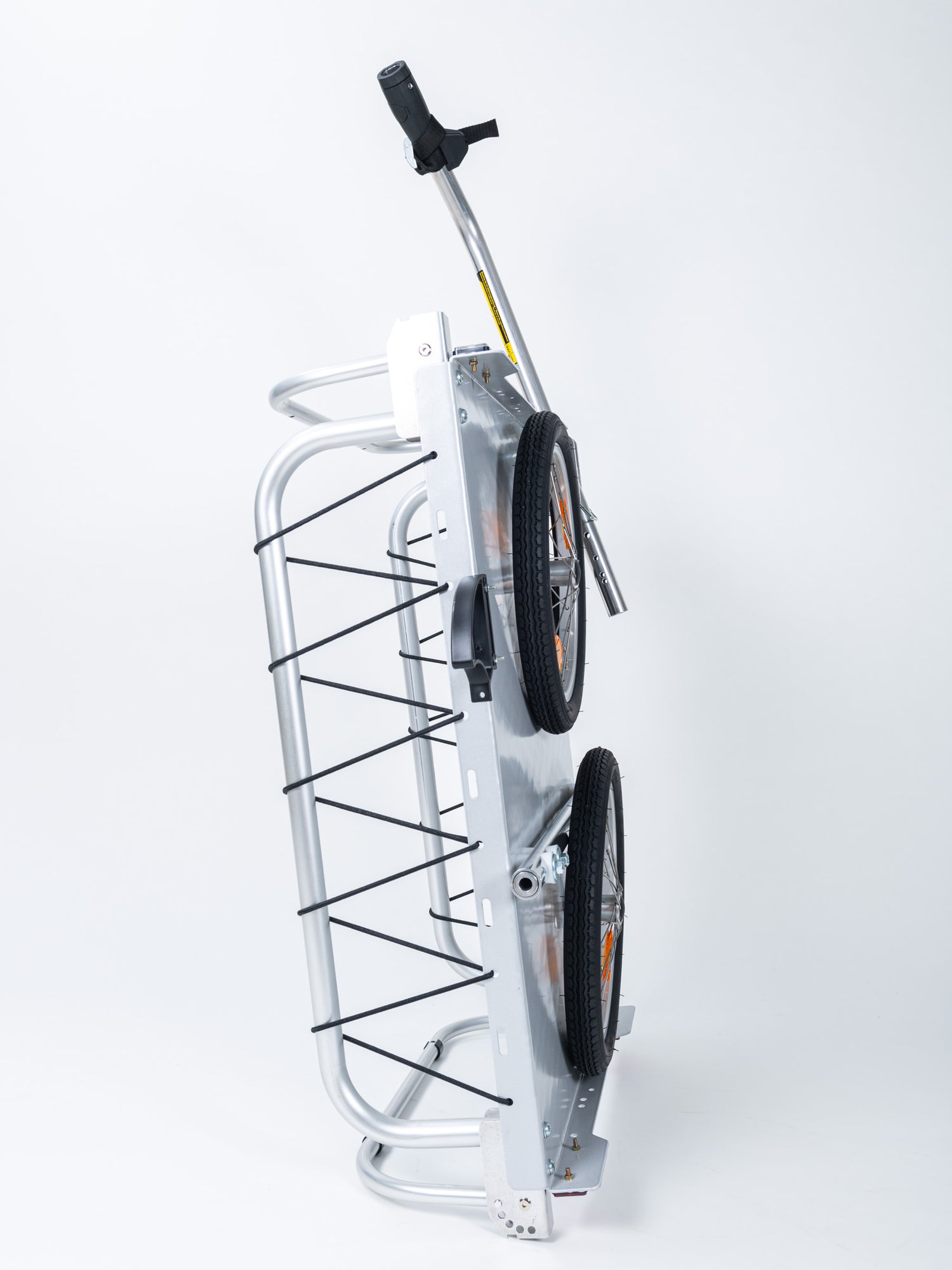

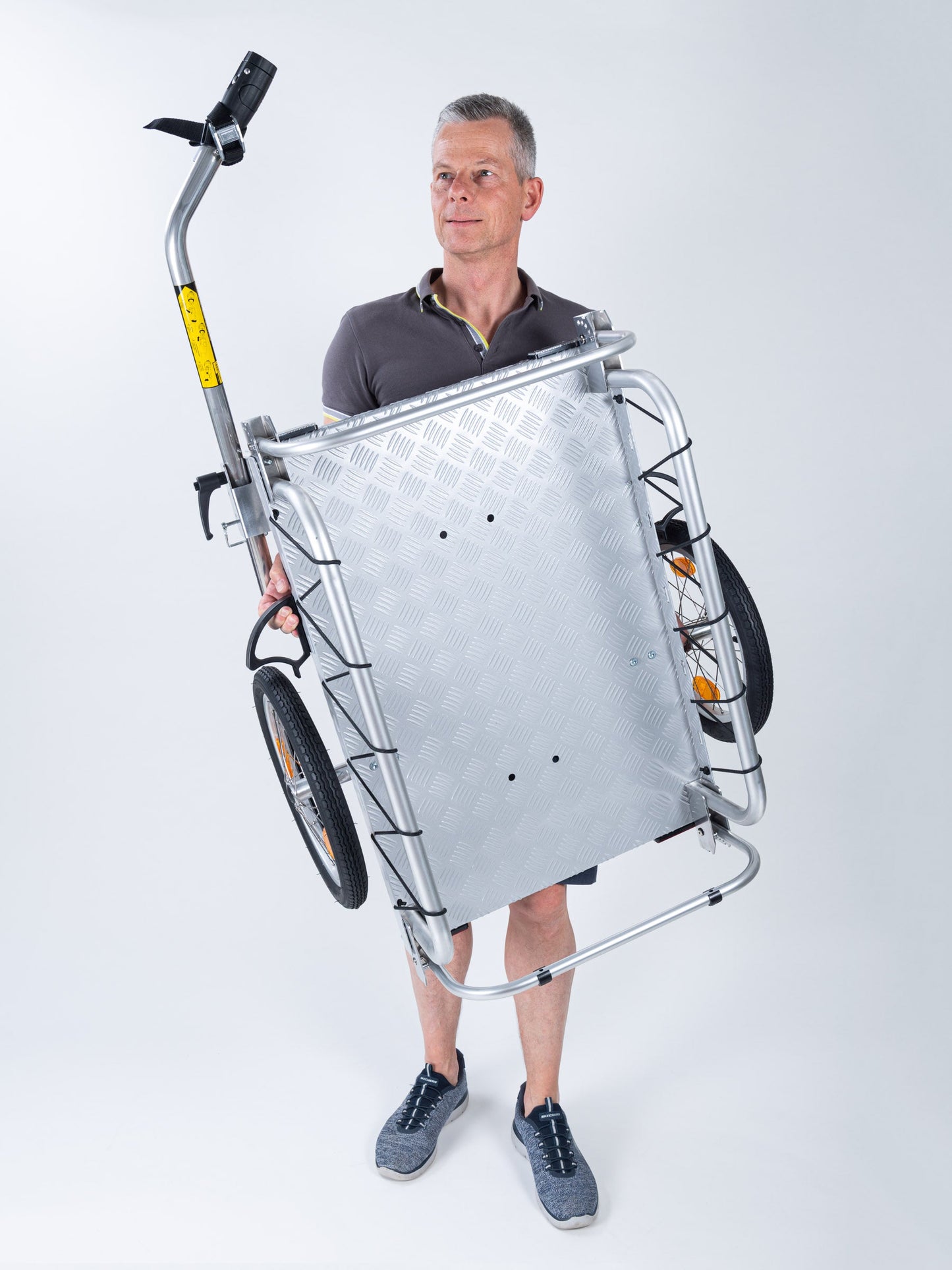

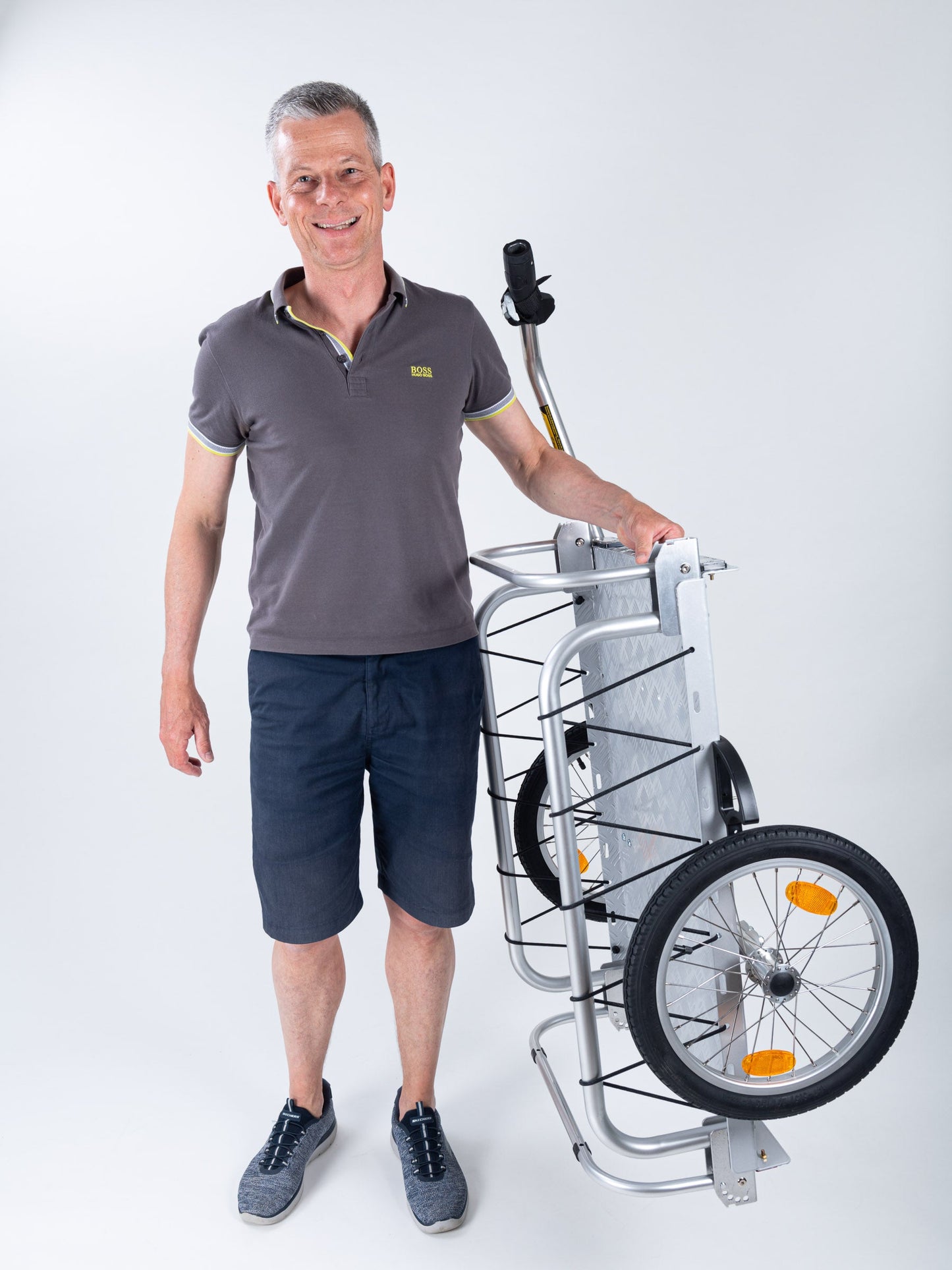

When placed upright, the transport trailer is only 34 cm deep and therefore fits on the side of the garage or in the hallway. The wheels can be removed with one hand and stowed on the floor panel.

Some elements have multiple functions; for example, the drawbar also serves as a stand or handle, and the front and rear bars, when folded down, serve as an extension of the floor panel. This allows us to achieve extremely low weight despite high usability and load-bearing capacity.

The trailer is delivered partially assembled. This reduces the selling price by lowering assembly, packaging, and transport costs. Detailed assembly instructions and the necessary special tools are included.

This means we are able to offer you the bike trailer at a very reasonable price considering its high quality.

nice:

Clear design – functional and well thought out. High-quality materials such as anodized or powder-coated aluminum.

The carrying case is the largest and most noticeable component, and it is available in different sizes and colors.

This allows you to design your trailer according to your own needs and taste!

Show me the bags

secure:

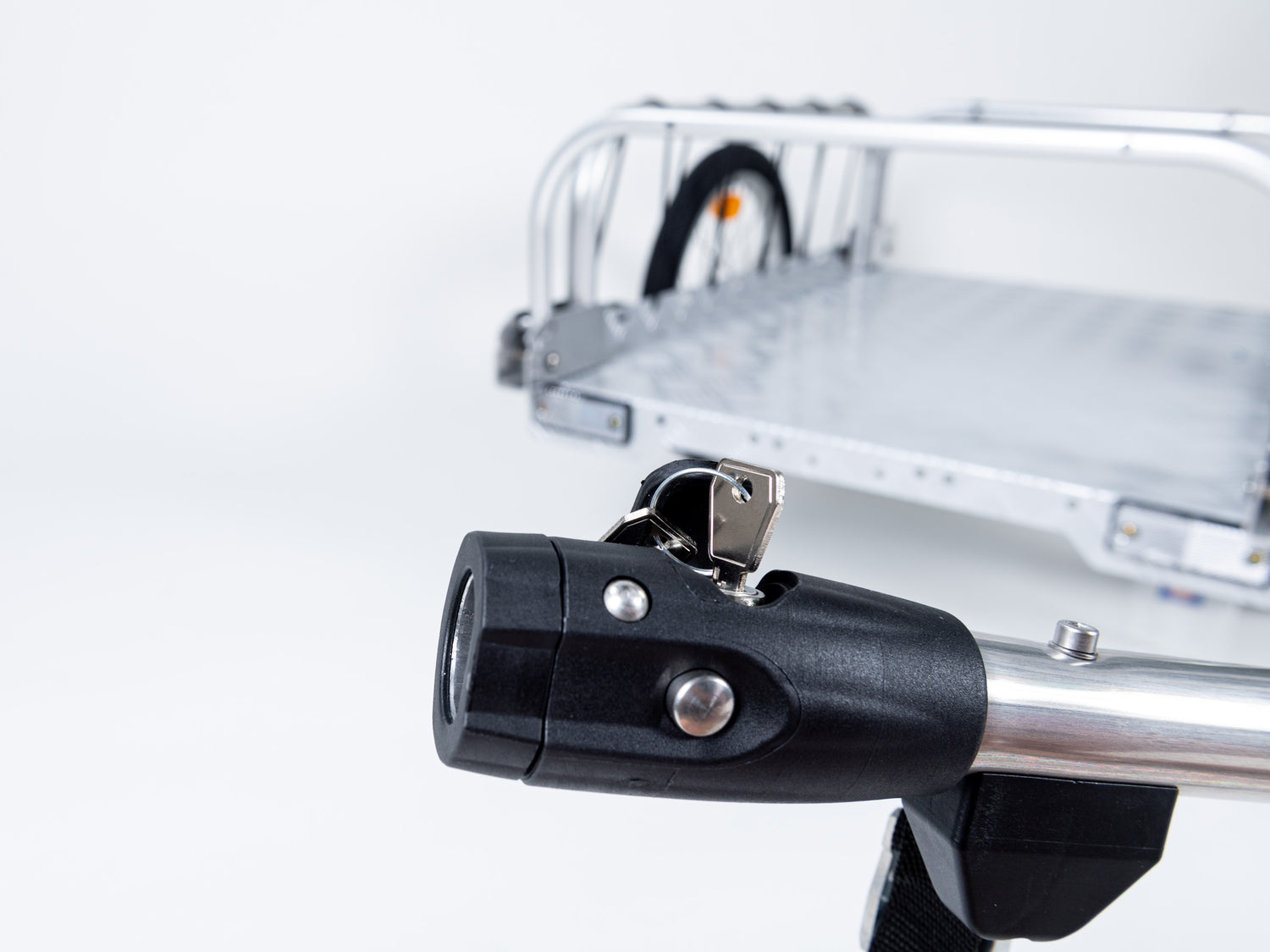

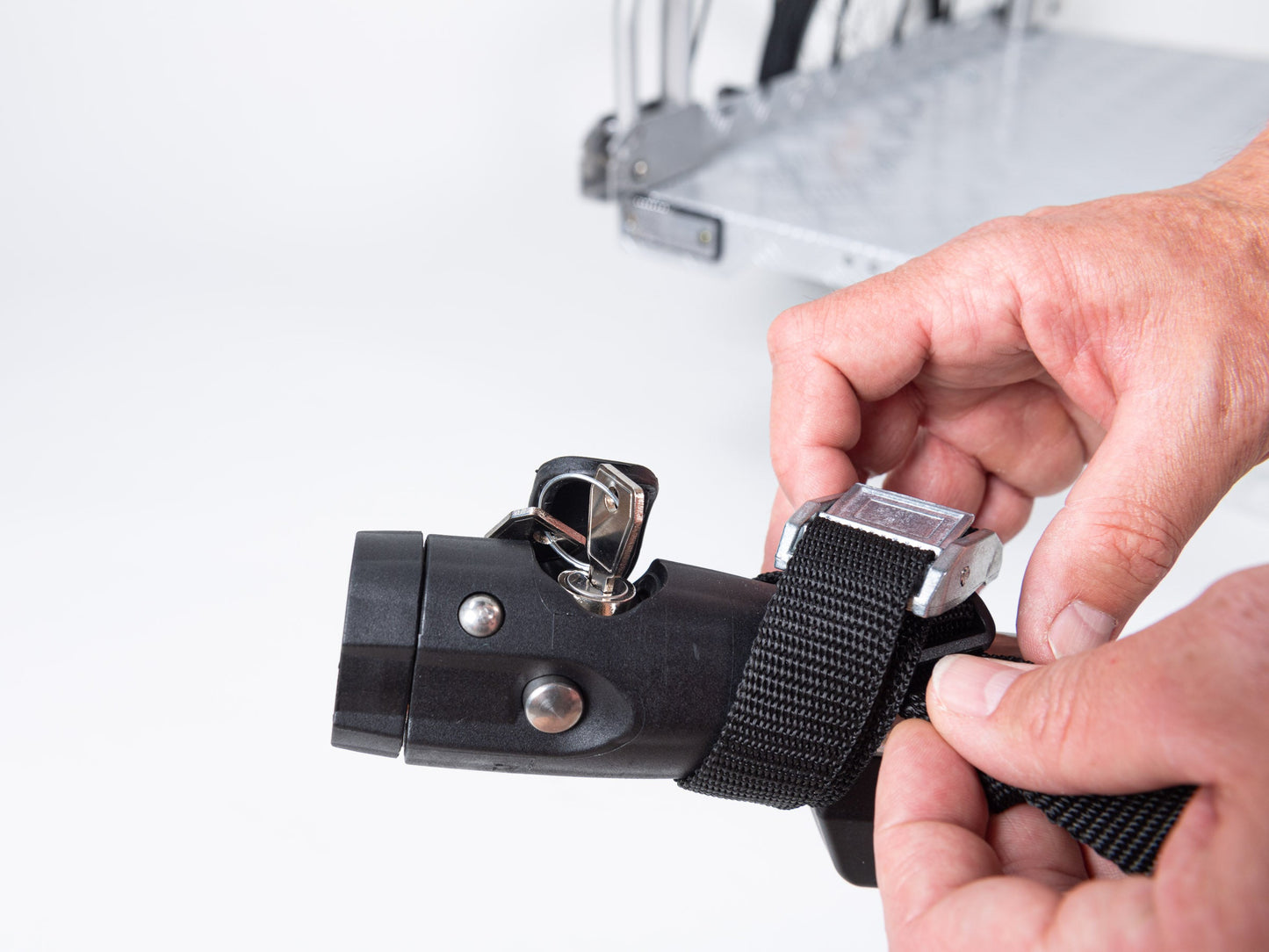

The safety-critical drawbar and coupling come from market leader WEBER and are characterized by ease of use and proven safety. The lock on the coupling ensures that the trailer stays attached to your bike.

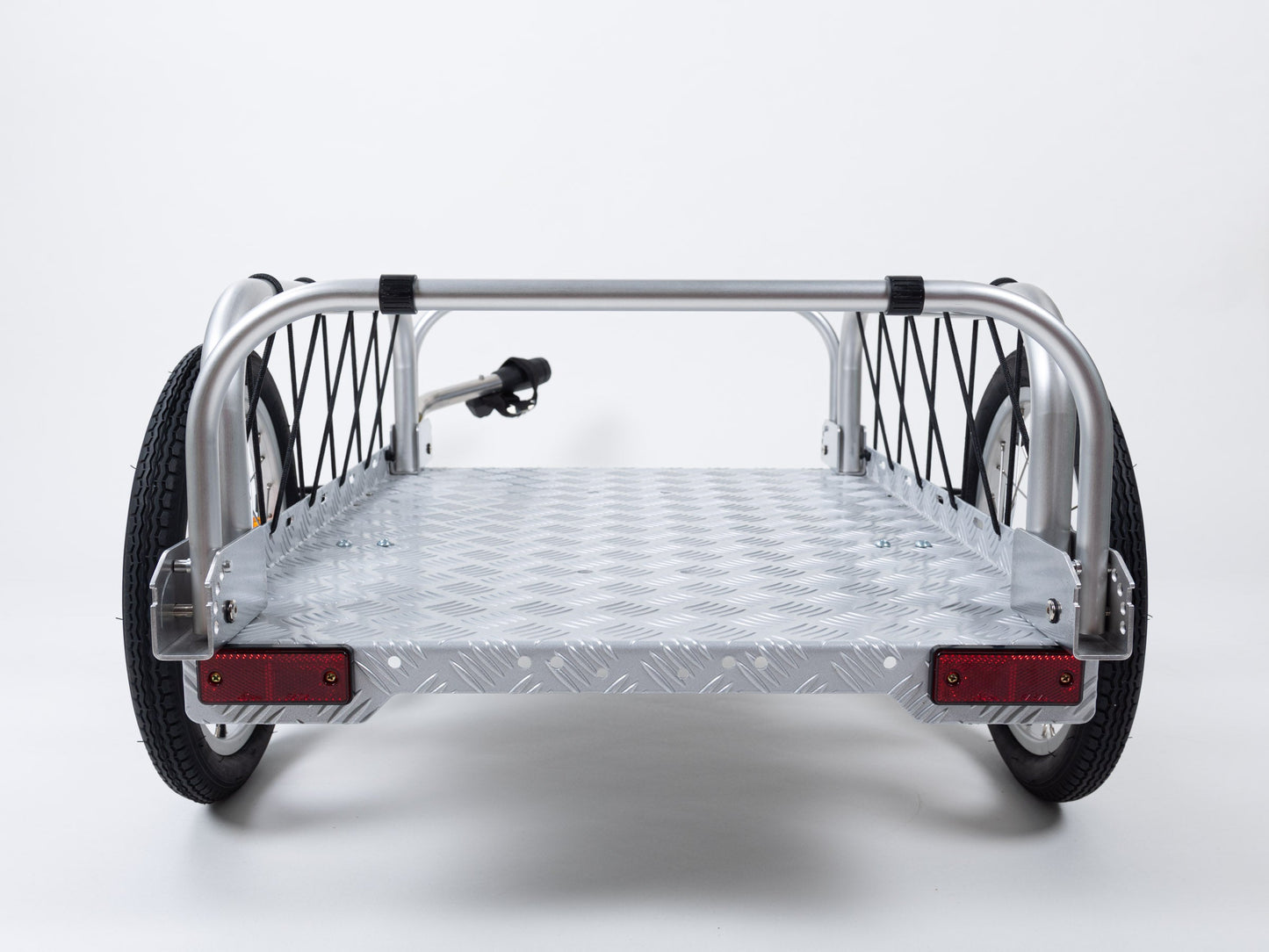

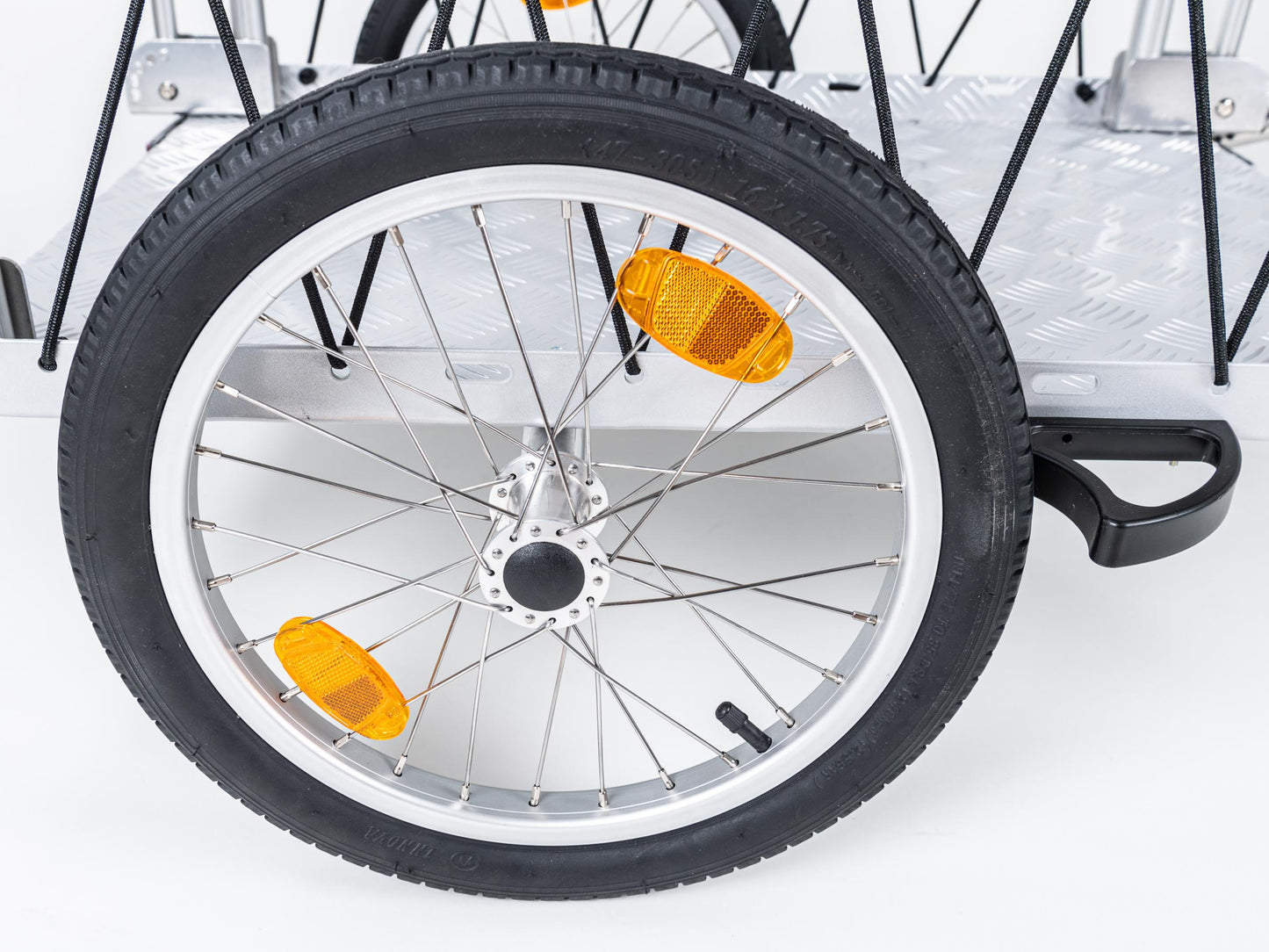

Deflectors to prevent wheels from cutting in and reflectors on all sides are a given.

If the maximum weight is observed, the handling when transporting large or heavy items is much safer than in a bicycle basket or on the luggage rack, as the center of gravity is lower.

And finally, our trailer was thoroughly tested by the TÜV!

sustainable:

By using a cargo bike trailer, you save resources and thus make a significant contribution to environmental protection.

We also paid attention to sustainability during production: Most components are made of aluminum, which, while energy-intensive to produce, is highly recyclable. We've largely avoided plastic; we offer a carrying case made from recycled material. And our packaging is made entirely of cardboard, some of which is already made from recycled material.

Our individual parts are manufactured almost exclusively in Europe, most of them in Germany and many close to us in Bavaria. This reduces transport routes and supports the local economy.

The components are assembled in Rosenheim by our partner, Wendelstein Werkstätten. These workshops, run by the Caritas Association, offer people with mental illnesses a supported re-entry into the world of work.

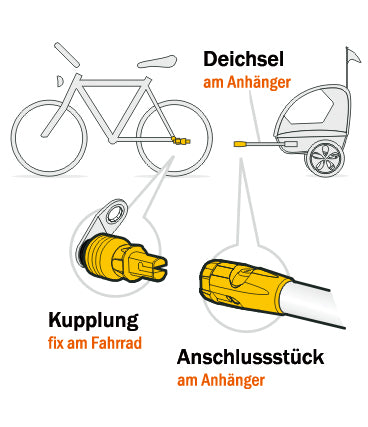

Couplings

Our trailer is equipped with the connector for the WEBER coupling.

The coupling for mounting on the bicycle from Weber is not included in the standard scope of delivery.

You can get special solutions directly from weber Products & Components: Shop | Weber Technik

The WEBER standard coupling suitable for many bicycle types is available here in the shop:

Show me the WEBER clutch

Adapter solutions for mounting the WEBER coupling on the bicycle

You can order solutions for quick release axles, solid axles or various thru axles online from our partner; you can find them here in our couplings:

to the product page Couplings

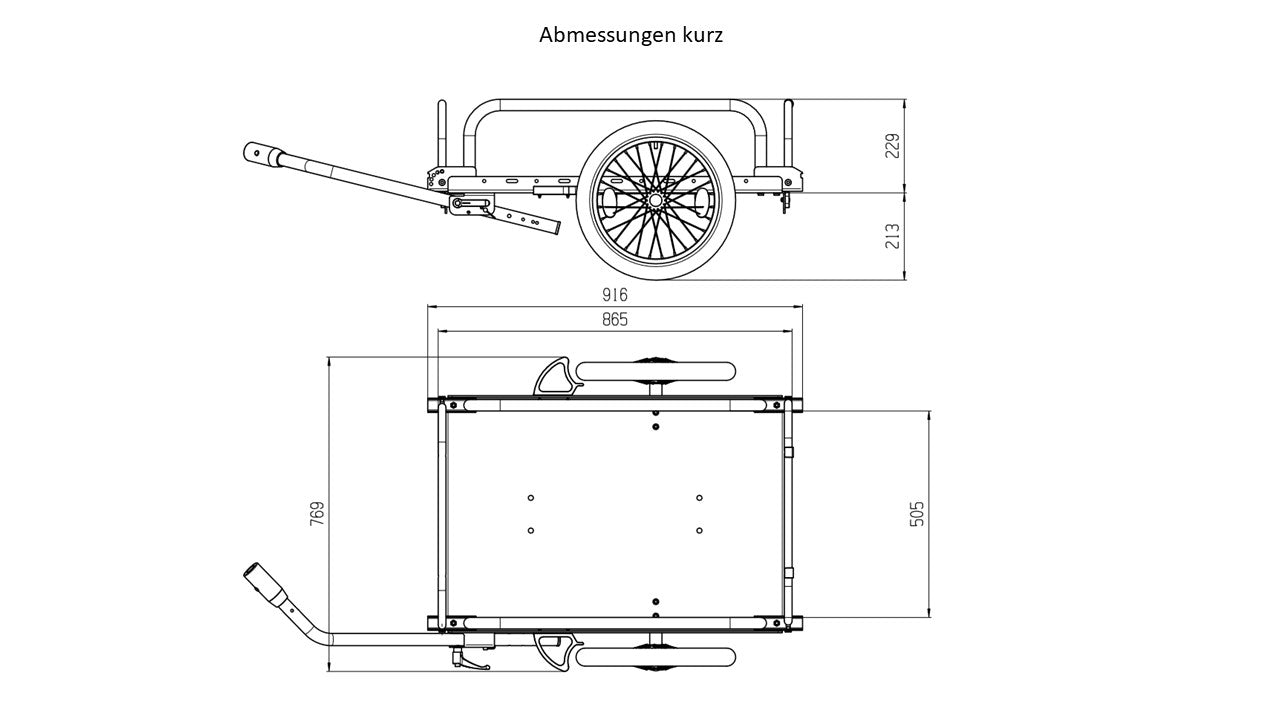

  • Dimensions short

    Front bar folded up and drawbar in short position

    Larger view

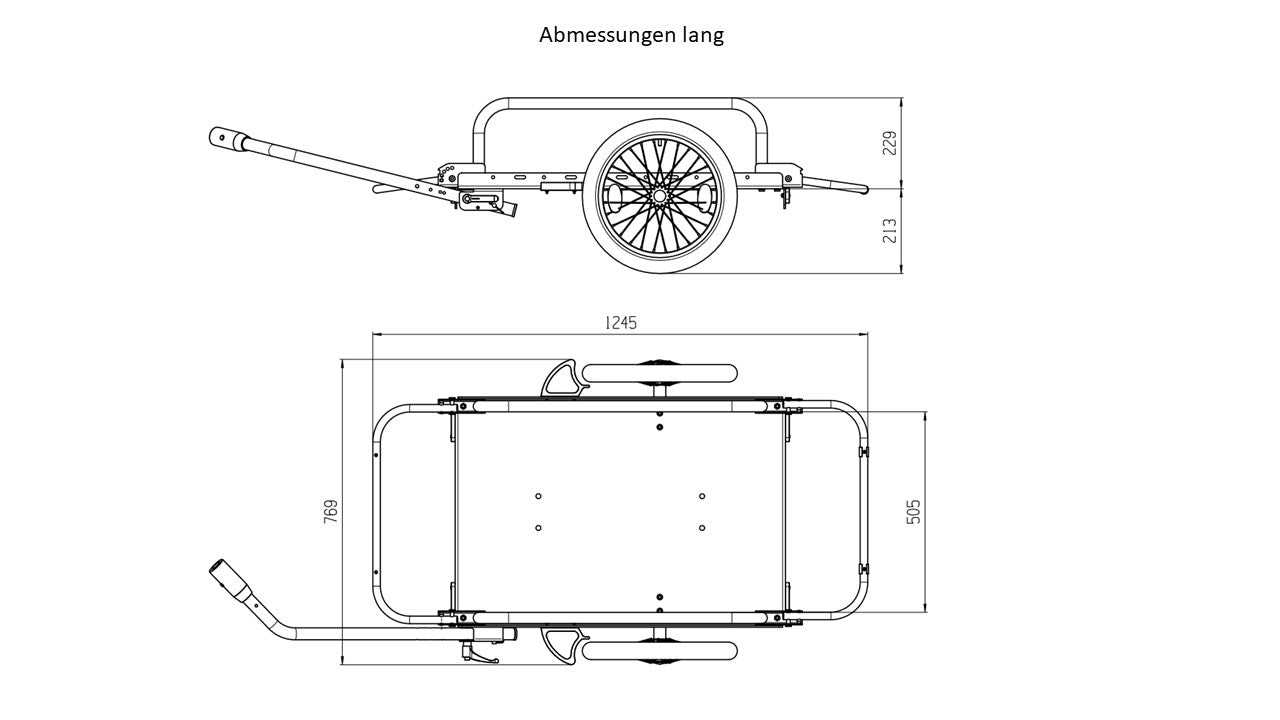

  • Long dimensions

    Forehead guard unfolded and drawbar in long position

    Larger view

Diverse application possibilities

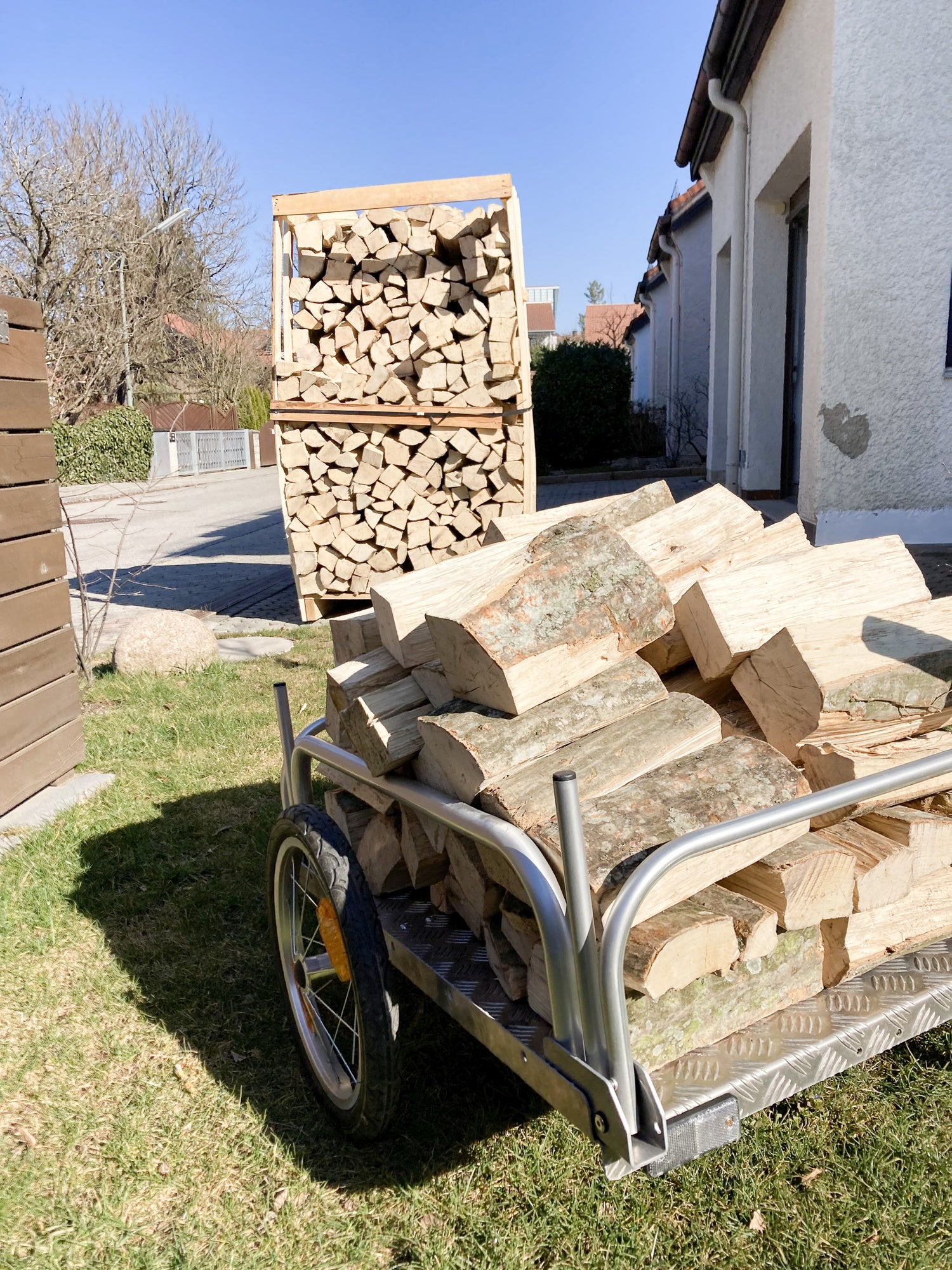

Impressions from our customers
